HD 612/615 Series
HG 612 SIZE
| Category | Description | ||||
|---|---|---|---|---|---|
| Engine | Details | Unit | HG612TA | HG615TA | |
| Continuous Power | 60Hz | PS/RPM | 460/1800 | 560/1800 | |
| 50Hz | PS/RPM | 450/1500 | 530/1500 | ||
| Number of Cylinders | 6 | ||||
| Bore × Stroke | mm | 130×155 | 130×160 | ||
| Displacement | cc | 12,344 | 12,742 | ||
| Speed Governor | EUI | ||||
| Fuel Consumption | ℓ/hr | 80.7 | 88.5 | ||
| Air Intake System | TCI | TCI | |||
| Cooling System | Indirect Seawater Cooling | ||||
| Coolant Capacity | ℓ | 80 | |||
| Freshwater Pump Type | Gear Drive, Centrifugal Type | ||||
| Seawater Pump Type | Belt Drive, Rubber Impeller Type | ||||
| Starting System | Electric Motor Start / DC24V | ||||
| Starter Motor Capacity | V-KW | 24-6 | |||
| Alternator Capacity | V-A | 24-80 | |||

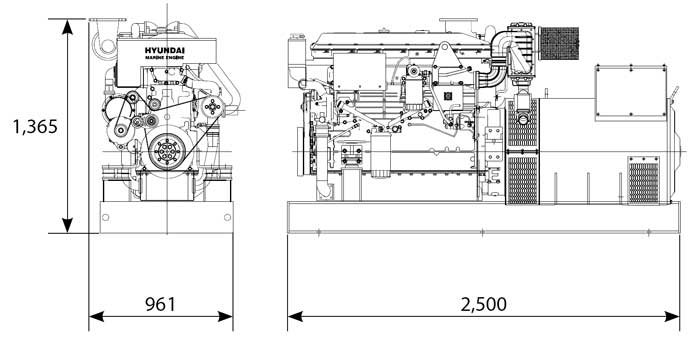

| Engine Size (Length X Width X Height) | mm | 2,500x961x1,365 | |||
| Engine Dry Weight (Excluding Body) | kg | 1,195 | 1,195 | ||
| Generator | Continuous Power | 60Hz | KVA/kW | 375/338 | 408/367 |
| 50Hz | KVA/kW | 375/338 | 408/367 | ||
| Voltage | 220VAC/380VAC/445VAC | ||||
| Phase Line Number | 3-Phase 4-Wire | ||||
| Excitation System | Self-Excitation System | ||||
| Efficiency | 85.7%More Than 85.7% | ||||
| Cooling / Bearing | Self-Ventilation / Standalone Ball Bearing | ||||
| Protection | IP23 | ||||
