HG 404 Series

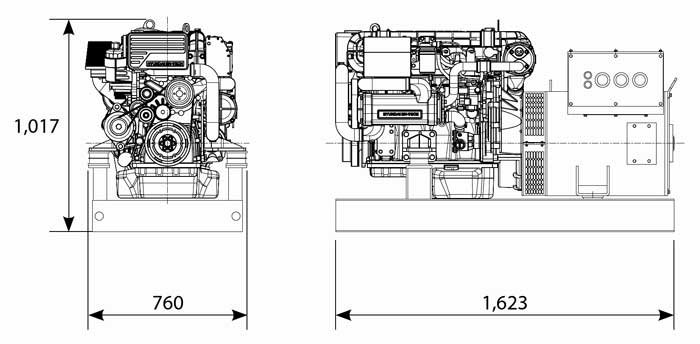

HG 404 Size
| Category | Description | |||
|---|---|---|---|---|
| Engine | Details | Unit | HG404TA2 | |
| Continuous Power | 60Hz | PS/RPM | 170/1800 | |
| 50Hz | PS/RPM | 125/1500 | ||
| Number of Cylinders | 4 | |||
| Bore × Stroke | mm | 103×118 | ||
| Displacement | cc | 3,933 | ||
| Speed Governor | Denso Common Rail System | |||
| Fuel Consumption | ℓ/hr | 22.5 | ||
| Air Intake System | TCI | |||
| Cooling System | Indirect Seawater Cooling | |||
| Coolant Capacity | ℓ | 15 | ||
| Freshwater Pump Type | Gear Drive, Centrifugal Type | |||
| Seawater Pump Type | Belt Drive, Rubber Impeller Type | |||
| Starting System | Electric Motor Start / DC24V | |||
| Starter Motor Capacity | V-KW | 24-5 | ||
| Alternator Capacity | V-A | 24-70 | ||
| Engine Size (Length X Width X Height) | mm | 1,623×760＋1,017 | ||
| Engine Dry Weight (Excluding Body) | kg | 380 | ||
| Generator | Continuous Power | 60Hz | KVA/kW | 125/100 |
| 50Hz | KVA/kW | 88/70 | ||
| Voltage | 220VAC/380VAC/445VAC | |||
| Phase Line Number | 3-Phase 4-Wire | |||
| Excitation System | Self-Excitation System | |||
| Efficiency | 85.7%More Than 85.7% | |||
| Cooling / Bearing | Self-Ventilation / Standalone Ball Bearing | |||
| Protection | IP23 | |||
