HG 403 Series

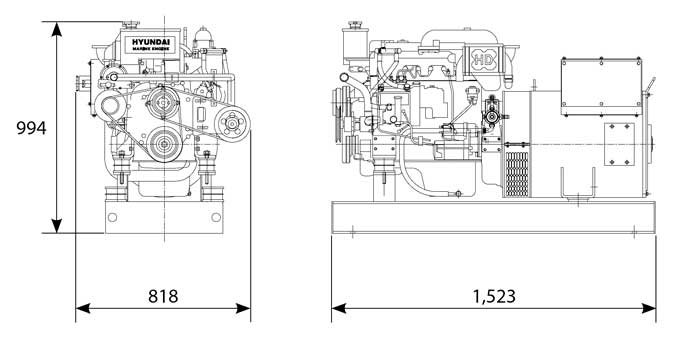

HG 403 Dimension
| Category | Description | ||||||
|---|---|---|---|---|---|---|---|
| Engine | Details | Unit | HG403 | HG403T | HG403TA | HG403TA2 | |
| Continuous Power | 60Hz | PS/RPM | 53/1800 | 68/1800 | 80/1800 | 93/1800 | |
| 50Hz | PS/RPM | 45/1500 | 54/1500 | 62/1500 | 75/1500 | ||
| Number of Cylinders | 4 | ||||||
| Bore × Stroke | mm | 104×105 | 100×105 | 104×115 | |||
| Displacement | cc | 3,568 | 3,298 | 3,907 | |||
| Speed Governor | Mechanical or Electrical | ||||||
| Fuel Consumption | ℓ/hr | 10.3 | 12.5 | 14.7 | 16.8 | ||
| Air Intake System | NA | TC | TCI | TCI | |||
| Cooling System | Indirect Seawater Cooling | ||||||
| Coolant Capacity | ℓ | 10 | |||||
| Freshwater Pump Type | Gear Drive, Centrifugal Type | ||||||
| Seawater Pump Type | Belt Drive, Rubber Impeller Type | ||||||
| Starting System | Electric Motor Start / DC24V | ||||||
| Starter Motor Capacity | V-KW | 24-5 | |||||
| Alternator Capacity | V-A | 24-50 | |||||
| Engine Size (Length X Width X Height) | mm | 1,523x818x994 | |||||
| Engine Dry Weight (Excluding Body) | kg | 330 | 335 | 335 | 350 | ||
| Generator | Continuous Power | 60Hz | KVA/kW | 30/24 | 45/36 | 63/50 | 90/68 |
| 50Hz | KVA/kW | 38/30 | 50/40 | 63/50 | 85/68 | ||
| Voltage | 220VAC/380VAC/445VAC | ||||||
| Phase Line Number | 3-Phase 4-Wire | ||||||
| Excitation System | Self-Excitation System | ||||||
| Efficiency | 85.7%More Than 85.7% | ||||||
| Cooling / Bearing | Self-Ventilation / Standalone Ball Bearing | ||||||
| Protection | IP23 | ||||||
