HG 401 Series

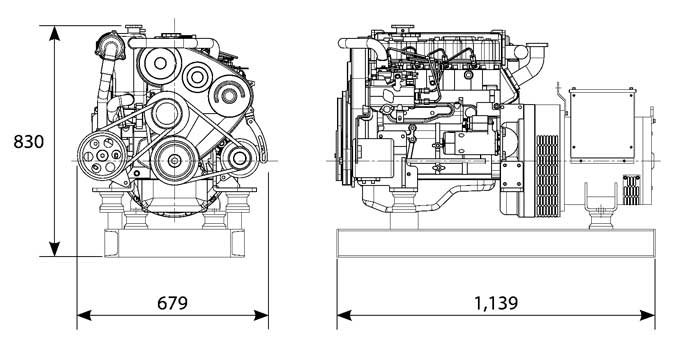

HG 401 Dimension
| Category | Description | ||||
|---|---|---|---|---|---|
| Engine | Details | Unit | HG401T | ||
| Continuous Power | 60Hz | PS/RPM | 29/1800 | ||
| 50Hz | PS/RPM | 29/1500 | |||
| Number of Cylinders | 4 | ||||
| Bore × Stroke | mm | 91.1×102 | |||
| Displacement | cc | 2,607 | |||
| Speed Governor | Mechanical or Electrical | ||||
| Fuel Consumption | ℓ/hr | 8.5 | |||
| Air Intake System | TC | ||||
| Cooling System | Indirect Seawater Cooling | ||||
| Coolant Capacity | ℓ | 5.5 | |||
| Freshwater Pump Type | Gear Drive, Centrifugal Type | ||||
| Seawater Pump Type | Belt Drive, Rubber Impeller Type | ||||
| Starting System | Electric Motor Start / DC24V | ||||
| Starter Motor Capacity | V-KW | 12-2.2 | |||
| Alternator Capacity | V-A | 12-65 | |||
| Engine Size (Length X Width X Height) | mm | 1,139x679x830 | |||
| Generator | Continuous Power | 60Hz | KVA/kW | 25/20 | |
| 50Hz | KVA/kW | 25/20 | |||
| Voltage | 220VAC/380VAC | ||||
| Phase Line Number | 3-Phase 4-Wire | ||||
| Excitation System | Self-Excitation System | ||||
| Efficiency | 85.7%More Than 85.7% | ||||
| Cooling / Bearing | Self-Ventilation / Standalone Ball Bearing | ||||
| Protection | IP23 | ||||
